DNC Software Setups kwikDNC is one of our latest generation dnc software programs for transferring NC programs easily, quickly and efficiently between your PC computer and any type of CNC machine tool that supports the RS232 serial interface.

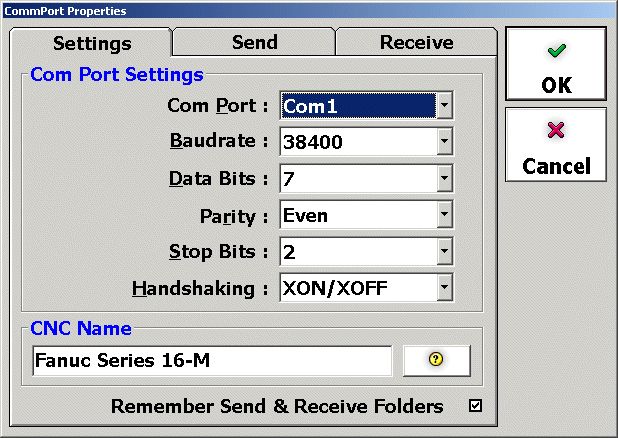

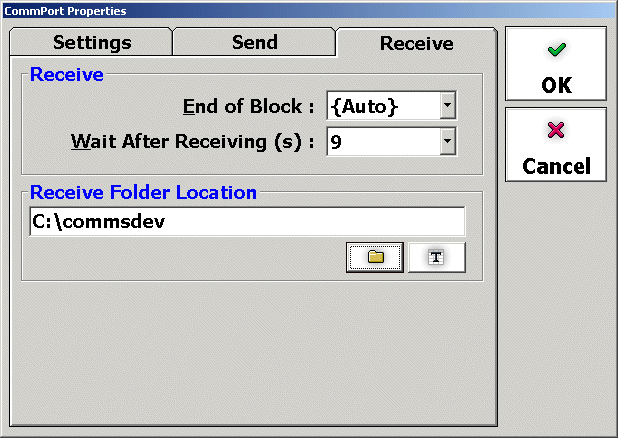

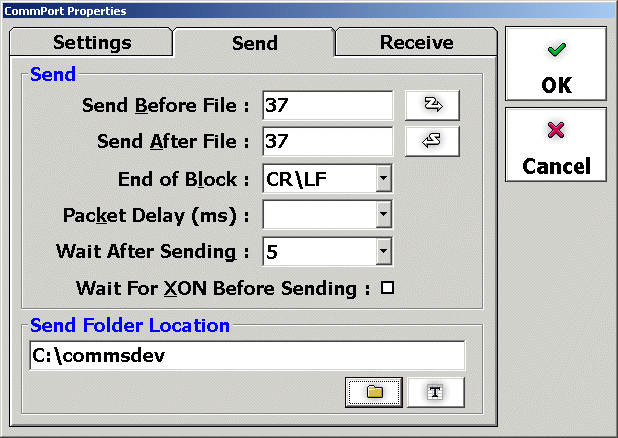

Com Port Parameters kwikDNC dnc software allows you up to 4 different CNC machine settings and has a full set of DNC parameters to make CNC communication possible on many different controller configurations. Com ports 1 to 128 are fully supported so that multi-port serial cards may be used, and baudrates 150 to 480600 are supported too. Example Setting kwikDNC ships with many predefined DNC protocol settings for many different types of popular CNC machines. Configs kwikDNC uses all the popular end of block settings, LF/CR/CR, CR/LF, LF and CR You can send control codes before and after the main body of the NC program to initiate CNC transfer. These can be sent external to the NC file so that you don't have to store these garbage codes in your files to disk. You can decide to ignore any blocks that contain a specific character (maybe comments) or delete blank line to save space on your CNC memory. Delays Timing is everything. CNC machines can be really awkward and in many cases its down to timing. kwikDNC allows you to set block and charcater delays, wait before and wait after sending. You can wait for XON, so that as soon as your CNC is put in input mode, the program will be sent automatically. In addition you can open up the port and so set the cable pins high so that teh CNC will see a remote device online.
